Hydraulic Cylinder 53-892-84 Uri Single Acting Telescopic Stroke 084.00 sarado 41.12 Rod Pin 1.63 Lapad ng Rod 1.5 Base Pin 2 LMSD 5 Mga yugto 3 Stroke 84 Extended 170

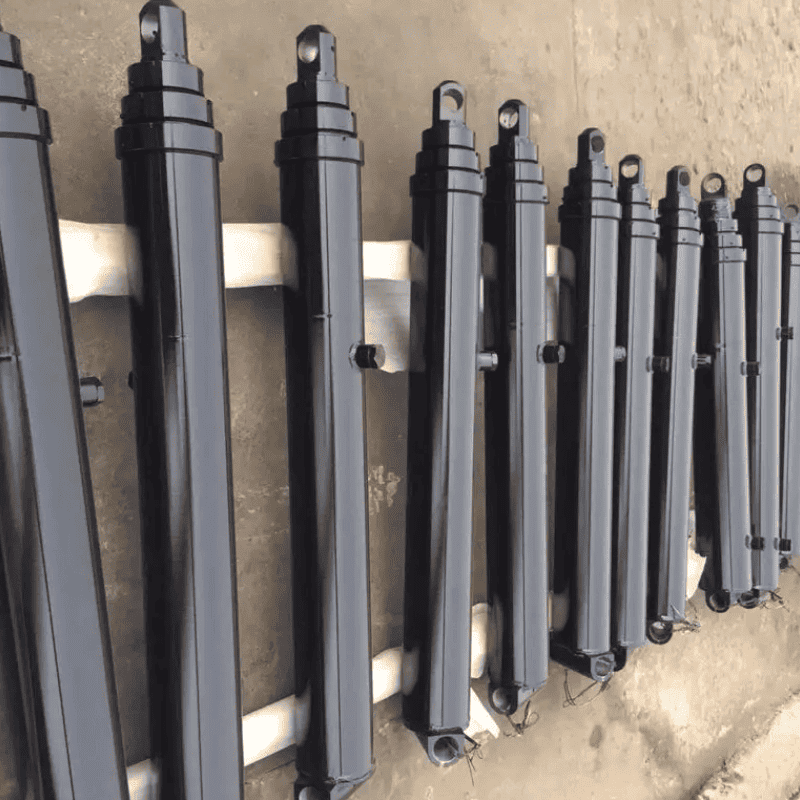

Hydraulic Cylinder 53-892-84
Bilang ng mga Yugto 3
Pinakamalaking Moving Stage Diameter 5 pulgada
Haba ng Stroke (A) 84.19 in (2138 mm)
Sarado na Haba (B) 41.12 in (1044 mm)
Pinalawak na Haba (C) 125.31 in (3183 mm)
Rod Mount Lapad (D) 1.5 in (38 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mount Lapad (G) 7 in (178 mm)
Base Mount Pin Hole (J) 2.06 in (52 mm)
Port (L) 3/4" NPTF
Mga galon ng Langis (Bawi) 1.7
Mga galon ng Langis (Extended) 6
